Glatz F-Line · Centre-Pole & Cantilever · Wind-Tunnel Certified
Glatz F-Line Centre-Pole Parasols — Swiss Wind-Rated Engineering
The Glatz F-Line: five centre-pole and cantilever models wind-tunnel tested from 55 km/h to 115 km/h. Swiss-engineered since 1895, built for North American commercial environments.
Part of our Windproof Commercial Umbrellas collection — see all wind-rated Glatz and FIM systems for North American hospitality.
The Swiss Engineering Advantage
Why Glatz F-Line: Precision Engineering for High-Wind Sites
When regular patio umbrellas face a sudden summer gust, they behave like sails — trapping high-pressure air underneath, buckling at the joints, or lifting straight out of their bases. At CSC Shade, we believe that premium outdoor shade shouldn't be a hazard. By partnering with Glatz, Europe's pioneer in high-performance shade engineering since 1895, we bring you an elite range of windproof parasols designed to stay standing when other umbrellas fail.
Aerodynamic Flat-Roof Profiles
Unlike deeply curved domestic umbrellas that trap wind, Glatz F-Line models feature streamlined, flat-roof canopy geometries that let air glide across the surface, dramatically reducing wind resistance.
Telescopic Table Clearance
Our centre-pole models feature a patented counter-rotating telescopic system that lifts the canopy as it closes, effortlessly clearing standard table heights of 85 to 125 cm — no furniture relocation required.
Elastic Dynamic Flexing
Glatz structures combine high-grade anodised aluminium masts with fiberglass-reinforced components and flexible strut ends. The canopy perimeter flexes elastically to absorb dynamic wind loads and snaps back into perfect, taut shape.
Premium Marine-Grade Fabrics
Available in spun-dyed Polyacrylic (Quality 5) at 300 g/m² density — outstanding fade resistance, water column rating over 350 mm, and medical-grade UPF 50+ that filters over 98% of harmful UV rays.
Wind-Certified Collection
The Glatz F-Line Range
Curated centre-pole and cantilever shade structures, certified in wind tunnels and rated on the Beaufort Wind Force Scale (Bft).
| Model | Canopy Shape | Sizing Options | Wind Limit | Opening Principle |
|---|---|---|---|---|
| Fortino Pro | Round / Square | Ø 250 cm to 250×250 cm | Up to 80 km/h (9 Bft) | Opposing telescopic lever |
| Fortero Pro | Round, Square, Rectangular | Ø 350 cm to 350×250 cm | Up to 70 km/h (8 Bft) | Telescopic lever; closes over tables |
| Fortello Pro & LED | Square, Rectangular | 350×350 cm to 400×300 cm | Up to 80 km/h (9 Bft) | Tensioning lever · optional LED |
| Castello Pro | Round, Square, Rectangular | Ø 200 cm to Ø 600 cm | Up to 115 km/h (11 Bft) | Ultra-heavy-duty tensioning lever |
Fortino Pro
Compact Strength
True strength is not a question of size. The Fortino Pro is our most popular compact centre-pole model, engineered specifically for high-exposure environments like elevated balconies, coastal dining patios, and rooftop bars. Its two-part profiled aluminum mast features a runner and crown moulded from fiberglass-reinforced plastic, held together with rustproof A4 stainless steel rivets.
Fortero Pro
The Restaurant Favourite
Sleek, modern, and built for heavy-duty commercial use, the Fortero Pro is the preferred choice for commercial spaces where large footprint coverage and daily durability are required. Featuring a massive 55 × 2.5 mm profiled mast and die-cast aluminium components, it withstands constant wear and tear without losing its elegant form.
Fortello Pro & LED
The Day-and-Night Solution
Spacious and bold, the Fortello Pro is built with a heavy-duty 67 mm telescopic mast. The Fortello LED version integrates dimmable warm LED lighting strips directly into the structural ribs. Powered wirelessly by a rechargeable battery pack hidden inside the frame, it provides up to 10 hours of ambient glow.
Foundation Engineering
Premium Anchoring: Sockets & Weighted Bases
A windproof canopy is only as strong as its connection to the ground. To maintain the certified wind limits of your Glatz parasol, it must be paired with original, heavy-duty mounting hardware.
In-Ground Sockets (Professional Installation)
The ultimate choice for commercial restaurant patios, beachfronts, and public parks.
Ground sleeves are cast directly into a concrete foundation (60 × 60 × 60 cm for larger models), transferring wind forces straight to the earth.
- Eliminates bulky bases — zero tripping hazards for waitstaff or guests
- Maximizes usable dining floor space
- Ground Sockets PX for Fortino and Fortero Pro
- Heavy-duty M4 Sockets for Fortello and Castello Pro
Mobile Weighted Bases
For properties where in-ground pouring isn't possible.
High-tonnage mobile bases designed to keep your parasol anchored safely, with options to move your shade as the sun moves.
- Z-Concrete Bases (70–90 kg): Standard centre-pole wind resistance
- M4 Galvanised Steel Frames (120–180 kg): Interchangeable concrete or granite plates
- Retractable Castor Slabs (Ponant & Kona): 360° rotating wheels hidden under casing
- Staff can reposition massive bases with ease as sun angles change
Fabric Science

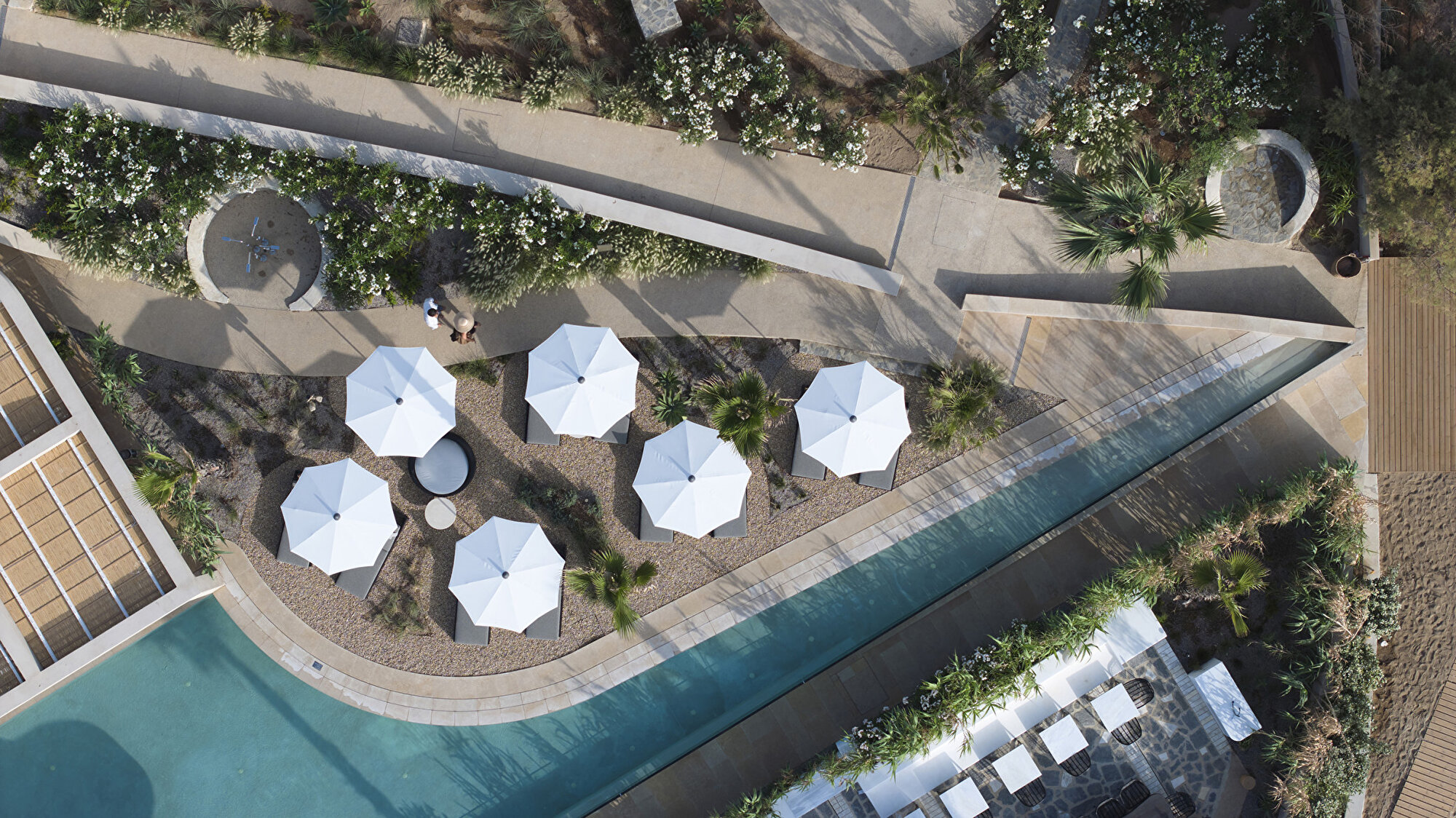

A Healthier, Cooler Microclimate
Our premium parasols do more than block glare — they protect health and keep guests comfortable. While cheap polyester canopies trap heat like greenhouse glass, our Grade 5 spun-dyed polyacrylic canopies act as thermal insulators, reflecting solar radiation back into the atmosphere.
- UPF 50+
Medical-grade certification — blocks over 98% of harmful UVA and UVB rays
- 15–18°F
Reduction in perceived temperature underneath — an instant, refreshing microclimate
- 350 mm+
Water column rating — outstanding waterproofing and dirt resistance
Commercial Design & Engineering Support
Consult with a CSC Shade Specialist
Selecting the ideal windproof parasol involves matching your localised wind exposure, ground conditions, and spatial layouts with the right system. Our commercial design and engineering specialists are ready to help you plan your next luxury residential or contract hospitality project.
READY TO START?
Talk to a shade specialist
Not sure which model fits your space? We'll help you choose.
