Commercial Cantilever Umbrellas — Hotel, Restaurant & Resort Shade
Heavy-duty, wind-rated side-mast parasols engineered for demanding hospitality, restaurant, and resort applications. Swiss-built for daily commercial use.
To maximize the revenue potential of an outdoor commercial patio, operators must prioritize spatial efficiency and unobstructed guest walkways. The commercial cantilever umbrellas collection at CSC Shade achieves this by shifting the support mast away from the shaded zone, providing an entirely unobstructed floor plan. These engineered side-mast systems from Glatz — including the Fortano, Sombrano S+, and Sunwing Casa — give architects and hospitality managers the ultimate freedom to configure dining tables, lounge seating, and pathways.
Unlike lightweight residential offset umbrellas, these commercial-grade systems are structurally built to withstand wind loads. The Fortano model features a robust flat roof design and a heavy-duty trolley system that opens synchronously, resisting winds up to 55 km/h when secured with a permanent concrete ground anchor. For multi-directional shade, the Sombrano S+ features a pedal-operated, ball-bearing-mounted base that rotates the structure 360 degrees, alongside a bilateral tilting rod that adjusts the canopy pitch up to 54 degrees in 18-degree increments.
Built with profiled aluminum masts (oval profiles measuring 66 × 95 × 3 mm on the Sombrano S+) and die-cast aluminum housings, these systems offer a long, low-maintenance service life.
Ensuring the safety of a cantilever structure under load requires professional anchoring. Specifying a Ground Insert Base (GIB) set flush in a concrete foundation or a heavy-duty cast-aluminum Deck Mount Plate (DMT) bolted to structural timber maintains a safe environment while keeping walkways clear of trip hazards. Compare our primary side-mast configurations below, then select your custom commercial shade solutions from the product list.
Technical Specification Matrix
| Model | Ground-Anchored Wind Rating | Rotational Footprint | Canopy Articulation | Master Frame Geometry |
|---|---|---|---|---|
| Fortano | Up to 55 km/h (300 × 300 cm) | Fixed Mast | Synchronous Trolley Extension | Heavy-Duty Flat Roof Profile |
| Sombrano S+ | Up to 45 km/h (300 × 300 cm) | 360-Degree Pedal Swivel | Bilateral Tilt up to 54 Degrees | Oval Profiled Aluminium Mast (66 × 95 × 3 mm) |
| Sunwing Casa | Up to 35 km/h | 360-Degree Swivel | Bilateral Tilt up to 45 Degrees | Compact Profile Aluminium Structure |
Explore by Application
Glatz Fortano Pro
Wind-resistant F-Line cantilever with non-rotatable oval mast and flat-roof profile. Steadfast in gusts.

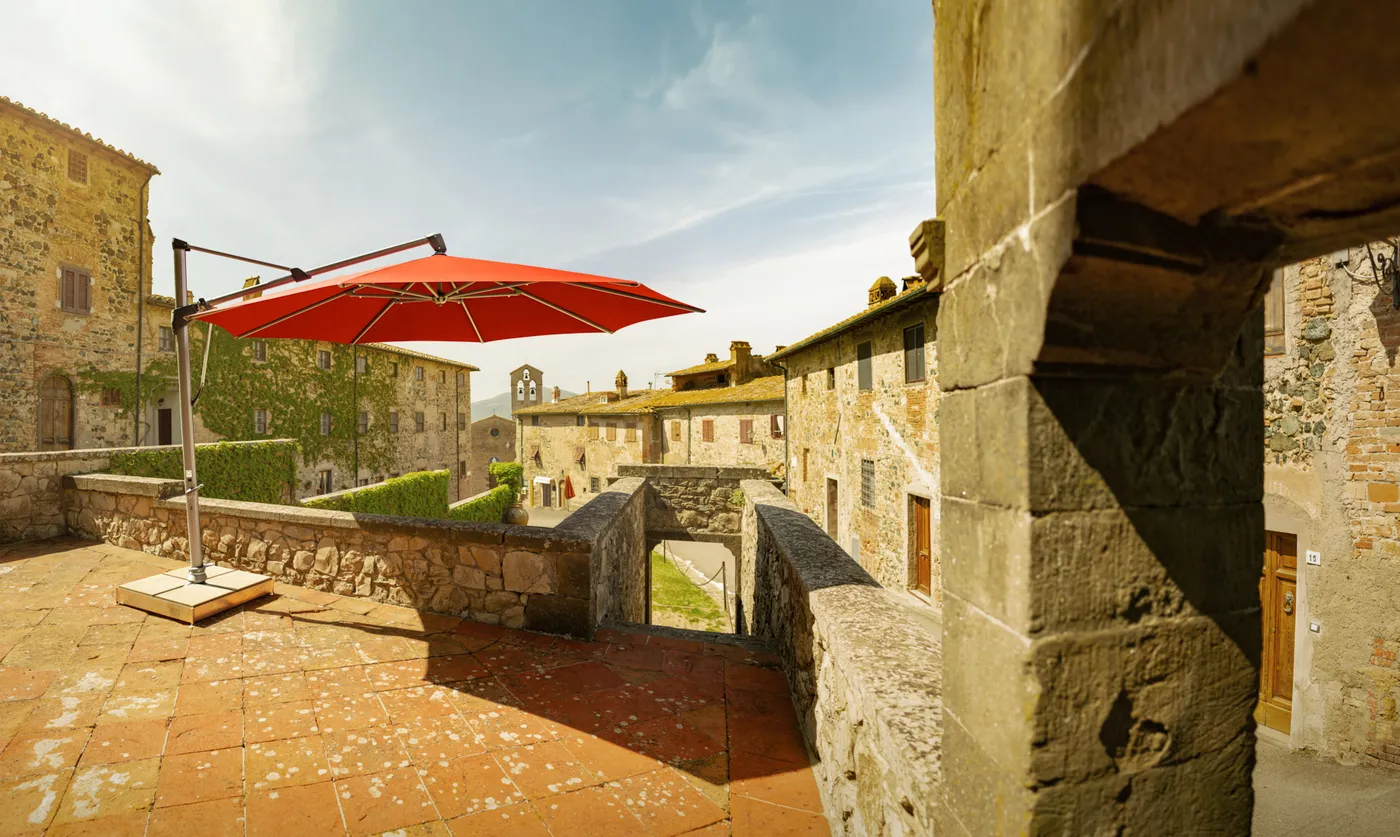

Glatz Sombrano S+
Premium cantilever parasol with 360° rotation and 54° tilt via ball-bearing pedal. 3.5–4m round and square.
Frequently Asked Questions
Commercial Cantilever Umbrellas — Common Questions
Why do commercial cantilever umbrellas require superior engineering compared to center-pole models?
Cantilevers locate the supporting mast to the side, exposing the structure to high leverage, torsional twisting, and asymmetrical wind lift. Premium models like the Sombrano S+ utilize an oval 66x95x3 mm aluminum mast and a die-cast aluminum trolley assembly to prevent bending under these forces.
How does the pedal-operated 360-degree rotation system function on the Sombrano S+?
The mast is mounted to a ball-bearing turnable base. Pressing the foot-pedal releases an internal locking collar, allowing a single operator to spin the entire frame up to 360 degrees. Releasing the pedal immediately re-engages the lock to secure the canopy in place.
What is the maximum canopy pitch of the Sombrano S+, and how does it block low-angle sun?
The Sombrano S+ features a smooth comfort crank and sliding carriage that tilts the canopy up to 54 degrees in either direction. This wide adjustment allows staff to block blinding glare and direct heat as the sun moves, keeping guests comfortable throughout the morning and afternoon.
How does the synchronous opening mechanism of the Glatz Fortano protect narrow restaurant patios?
As the manual hand crank is turned, the horizontal support arm slides upward along the mast while the canopy opens simultaneously. This vertical-first opening path keeps the frame completely clear of surrounding tables, chairs, and walls. It is ideal for narrow walkways and tight patio spaces.
Why is FIM's individually replaceable rib system a critical commercial differentiator?
In busy commercial venues, wind gusts or accidents can bend or damage an umbrella rib. While traditional cantilevers require replacing the entire frame, FIM models (Rodi and Capri) feature individually replaceable ribs. Staff can easily swap a damaged rib on-site with basic tools, eliminating expensive shipping and operational downtime.
What are the performance and maintenance differences between wood and aluminum cantilever frames?
Wood cantilever frames (like the Glatz Aura or FIM Capri) use treated timber for a classic, high-end resort look but require periodic oiling and sealing to prevent weathering. Aluminum frames (like the Sombrano S+ or FIM Rodi) feature anodized or powder-coated finishes that are maintenance-free and offer permanent resistance to chlorine, salt-air, and corrosion.
What wind velocities can commercial cantilever umbrellas safely handle?
Cantilevers are more sensitive to wind than center-pole parasols. When secured to fixed ground sockets or steel deck plates, premium models like the Sombrano S+ or Fortano are certified to withstand wind speeds of 28 to 34 mph (45 to 55 km/h). Canopies must be fully closed when wind speeds exceed these limits.
