Swiss-Engineered · Commercial Grade · Wind-Certified
Giant Commercial Patio Umbrellas — Large Outdoor Shade for Venues
Precision-engineered giant parasols and luxury resort shading systems.
The Collection
Heavy-Duty Commercial · Premium Architectural Series
Four purpose-built models spanning every commercial brief — from 120 mm-mast resort flagships to rapid-deploy centre-pole workhorses. Each carries Material Class 5 fabric and full wind-tunnel certification.

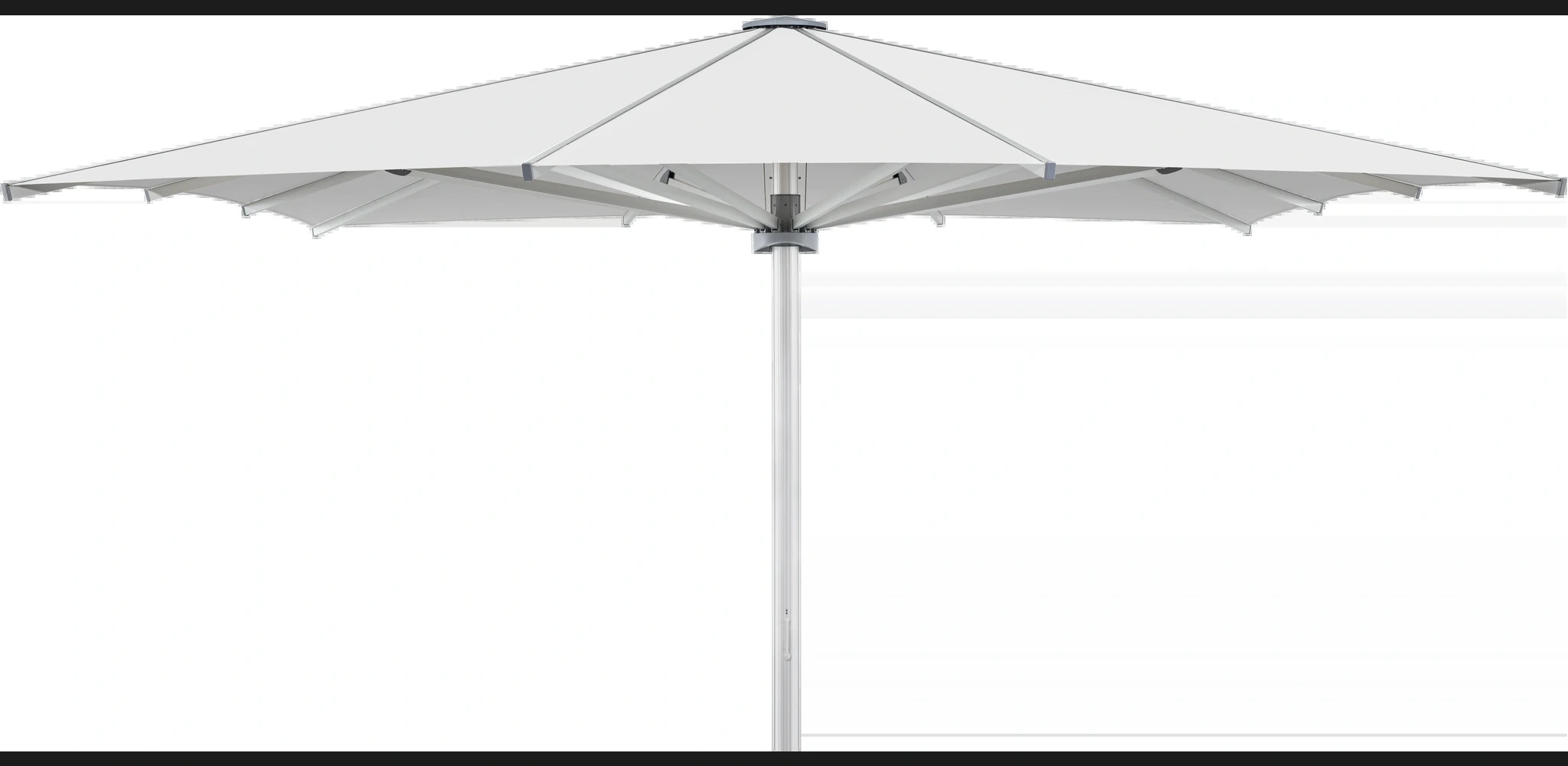

Glatz Palazzo Royal
Specifying the ultimate large-scale architectural shade asset, engineered with a massive 120 mm mast to span up to 8 meters in high-yield commercial venues.
Heavy-duty wind resistance up to 110 km/h combined with a counter-rotating 19-turn manual crank or motorized automation provides unmatched coverage.

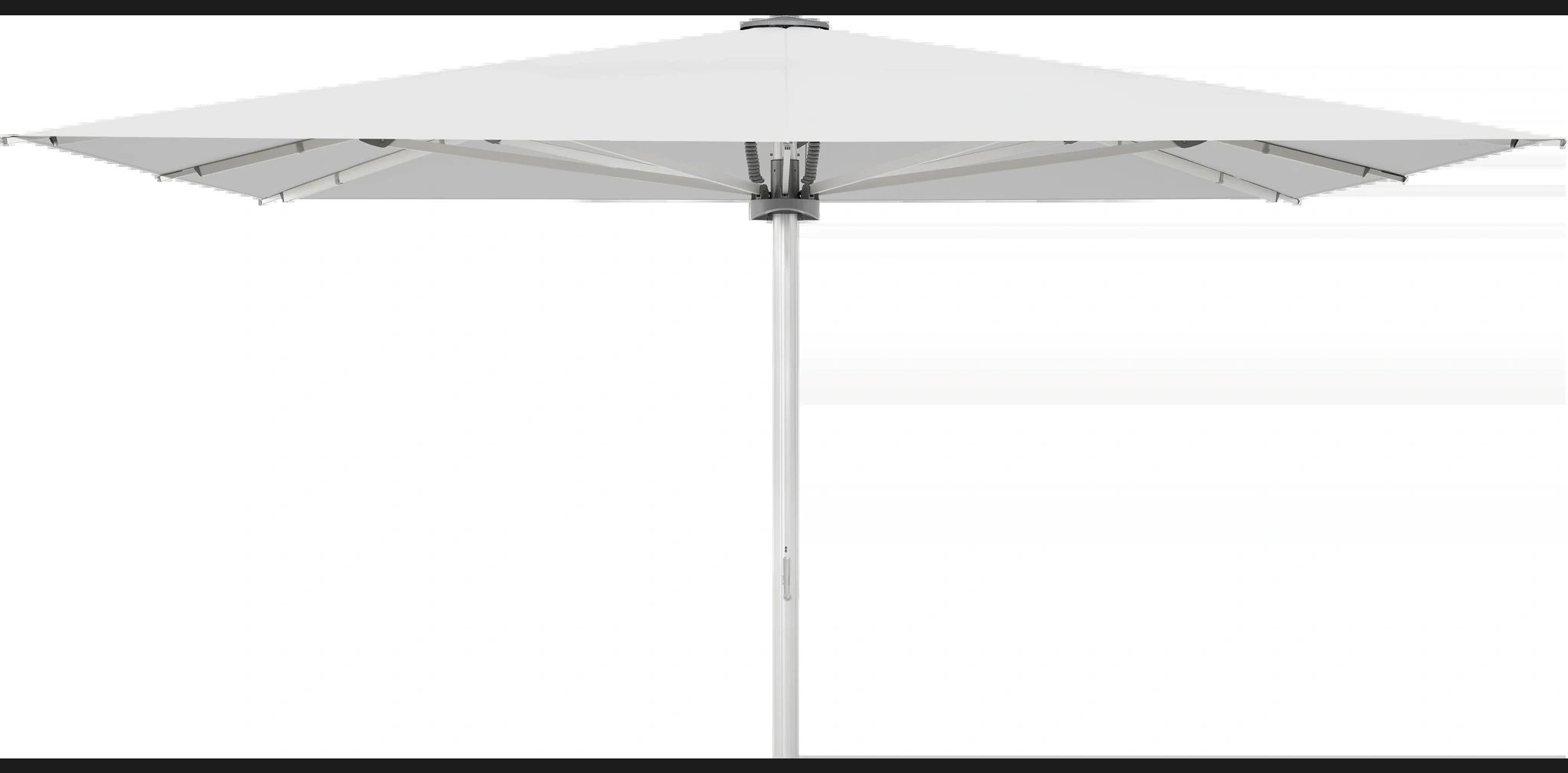

Glatz Palazzo Noblesse
A Swiss masterpiece of commercial shade infrastructure, protecting large gatherings across spans of up to 700 centimeters.
Combining a robust 105 mm non-rotating mast with 12 effortless crank turns and certified 95 km/h wind stability.

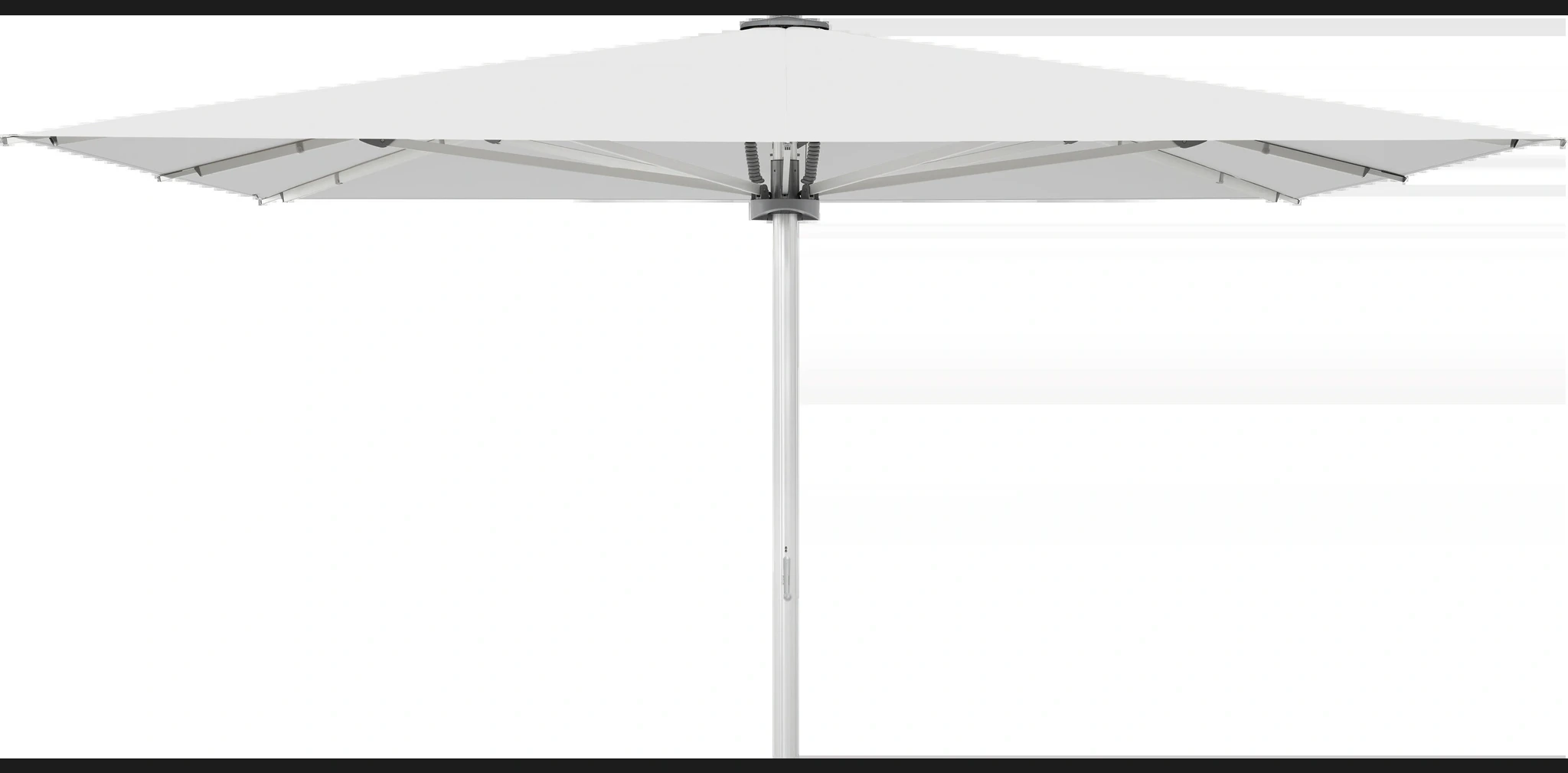

Glatz Palazzo Style
This iconic large commercial giant parasol delivers a modern flat-roof silhouette while remaining stable in extreme headwinds up to 115 km/h.
Standard-setting telescopic counter-motion opening operates above fully laid tables in 9 manual turns or via remote motorization.

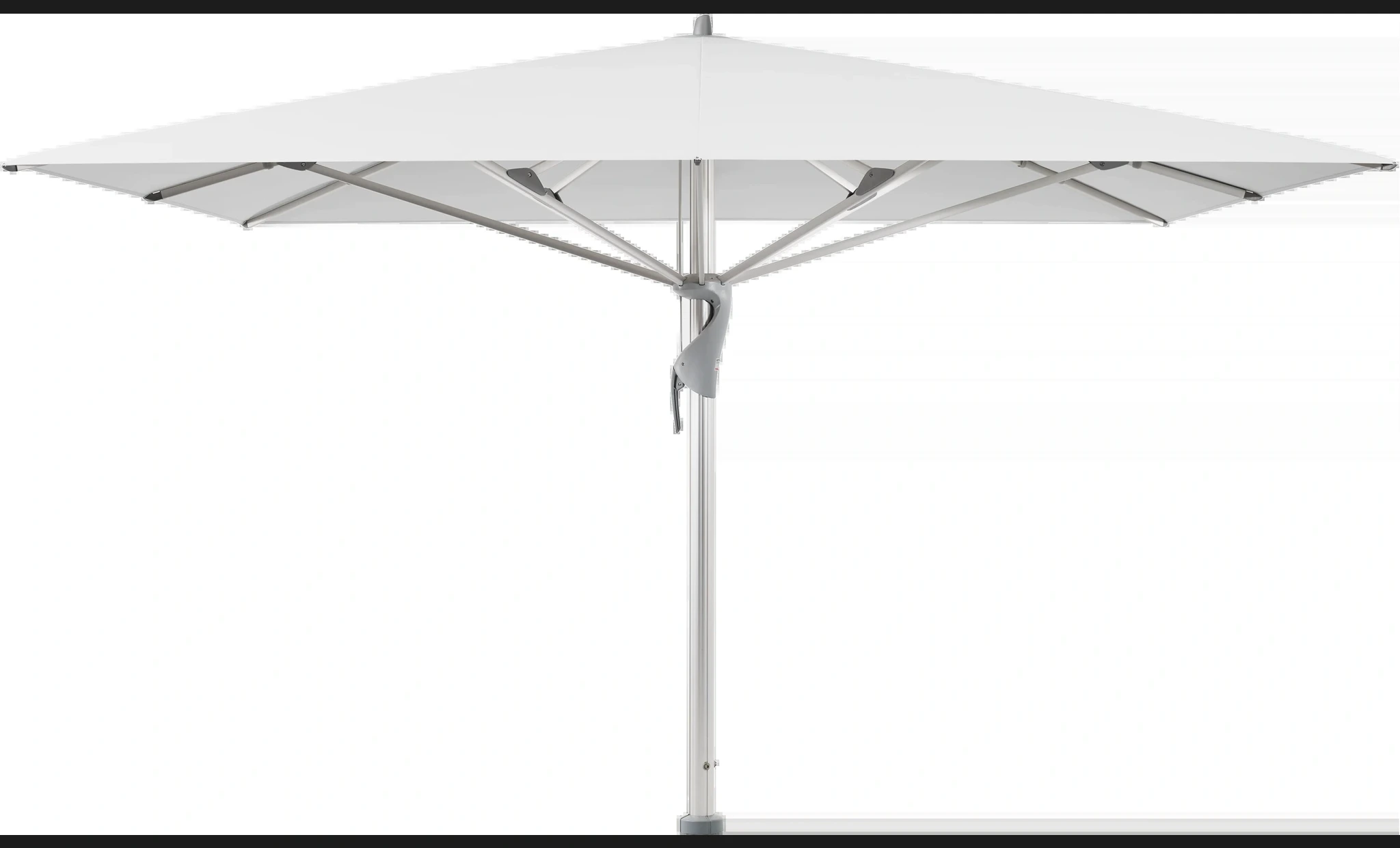

Glatz Castello Pro
The premier wind-resistant all-rounder designed with fiberglass-reinforced parts and a 90 mm anti-rotation mast for high-traffic public parks and hotel patios.
Rapid-deployment telescopic slide and lockable tensioning lever mechanics ensure simple manual handling and wind stability up to 100 km/h.
Commercial Problem-Solvers
Engineered for Architects and Hospitality Specifiers
Three engineering capabilities that separate commercial-grade giant parasols from residential structures — and why resort developers and procurement officers specify Glatz across North America.
Operational Table Clearance
Telescopic Counter-Motion Opening Mechanics
The patented telescopic counter-motion opening mechanism raises the entire canopy frame vertically during closure, ensuring the structure folds cleanly over fully set dining tables and bar counters without requiring the relocation of furniture.
- Closed clearance height up to 80 cm — no furniture relocation required
- Uninterrupted layout configuration and optimized table turn times
- Instant protection during sudden weather transitions
- Eliminates labor-intensive setup adjustments for hospitality staff
Integrated Comfort Ecosystem
Internal Mast Wiring and Automation
Engineered for continuous day-to-night operations, the structural core features fully concealed internal mast wiring that routes power for automated motorization, integrated LED lighting, and high-performance infrared heating rails directly through the framework.
- All electronics concealed — no exposed conduits, clean architectural sightlines
- Motorized remote-control canopy systems standard-ready
- Integrated LED lighting and infrared heating grids
- Transforms patio covers into extended, high-revenue seasonal dining spaces
Class 5 Wind Infrastructure Trust
Engineering-Certified Wind-Tunnel Testing
Built exclusively with Material Class 5 dope-dyed polyacrylic fabrics and tested extensively in specialized wind tunnels, these premium outdoor shade systems withstand continuous wind speeds of up to 120 km/h when fully open.
- Material Class 5: 100% polyacrylic, ~300 g/m², dope-dyed for UV stability
- Lightfastness rating 7–8 (blue wool scale) · UPF 50+ minimum
- Teflon / Scotchgard hydrophobic coating — 350 mm water column rated
- Specifying these systems ensures compliance with commercial safety codes
Architectural Specification Comparison
Comprehensive Engineering Attributes
A technical evaluation matrix for project managers, landscape architects, and civil engineers assessing giant parasol procurement across North American commercial developments.
| Engineering Attribute | Palazzo Royal | Palazzo Noblesse | Palazzo Style | Castello Pro |
|---|---|---|---|---|
| Central Mast Profile | 120 mm Ø · internal reinforcing ribs | 105 mm Ø · internal reinforcing ribs | 105 mm Ø · internal reinforcing ribs | 90 mm profiled anti-rotation mast |
| Wall Thickness | 5.5 mm structural wall | 4.5 mm structural wall | 4.5 mm structural wall | 3.2 mm structural wall |
| Wind Certification | Up to 110 km/h | Up to 95 km/h | Up to 115–120 km/h | Up to 100 km/h |
| Max Canopy Coverage | Ø 800 cm · 700×700 · 800×600 cm | Ø 700 cm · 600×600 · 600×500 cm | Ø 450 cm · 450×450 · 350×250 cm | Ø 600 cm · 500×500 · 550×450 cm |
| Opening Mechanism | 19-turn counter-rotating crank / motor | 12-turn counter-rotating crank / motor | 9-turn counter-rotating crank / motor | Telescopic slide + lockable tensioning lever |
| Fabric Quality Standard | Material Class 5 · 300 g/m² | Material Class 5 · 300 g/m² | Material Class 5 · 300 g/m² | Material Class 5 · 300 g/m² |
| Min. Base Ground Weight | 620 kg plate base / ground socket | 240–620 kg / ground socket | 180 kg / ground socket | 180–700 kg / ground socket |
Wind ratings are configuration-dependent. All models require permanent ground anchoring for maximum wind certification. Contact CSC Shade for project-specific engineering and anchoring specifications.
1895
Swiss-engineered since
120 km/h
Maximum wind certification
Ø 800 cm
Maximum canopy span
Canada-wide
Supply and specification
