Flexy Line · by FIM
Freestanding Retractable Awnings — Modular Italian-Engineered Commercial Shade
Italian side-post shade systems — no wall mounting required. Crank-operated, 360° rotation, ships across Canada.
Expansive commercial layouts — such as poolside lounges, resort beach clubs, and open-air event spaces — require highly modular shading that can cover immense ground with minimal upright columns. The freestanding awnings collection at CSC Shade provides an Italian-engineered solution by FIM, featuring the contemporary Flexy, Flexy Zen, and Flexy Twin series. Using dual-post or elliptical twin-post perimeter frames, these systems eliminate central pole obstructions, creating a clean, architectural pavilion aesthetic.
Engineered for high-exposure contract use, the FIM Flexy series is constructed from heavy-duty powder-coated aluminum and marine-grade stainless steel hardware. This composition offers superior resistance to corrosive salt air and chlorinated pool environments. The retractable canopies open via manual winch or string-pulley systems and tilt both forward and backward to track the sun. The modular design allows specifiers to couple multiple units (ranging from 8 × 10 ft to 10 × 16 ft) for continuous linear coverage.
The Flexy Twin utilizes a single central post to support dual independent 8 × 8 ft wings, offering a large shade footprint with a highly compact ground profile. Fabric options include solution-dyed Sunbrella acrylic for fade resistance, high-permeability Phifertex micro-mesh for high wind performance, or waterproof Airfim.
To secure these modular shading structures under wind loads, professional mounting is required. Specifiers can choose the zinc-plated steel Ground Insert Base (GIB) for concrete casting (completely flush when the canopy frame is removed), an 8 × 8 inch or 14 × 14 inch cast-aluminum Deck Mount Plate (DMT) for structural timber, or a low-profile Freestanding Offset Base (FSB) ballasted with standard concrete pavers. Review the modular specification guide below before exploring our full collection of commercial shade solutions.
Technical Specification Matrix
| Awning Variant | Standard Sizing Footprints | Structural Material Blend | Mounting Base Configurations | Engineering Performance Fabrics |
|---|---|---|---|---|
| Flexy Standard | 8 × 10 ft to 10 × 16 ft | Powder-Coated Aluminium & Stainless Steel | Concrete GIB Flush Sleeve / Cast-Aluminium DMT / FSB Paver Base | Spun-Dyed Sunbrella Acrylic / Phifertex Mesh / Airfim |
| Flexy Zen | 10 layouts (up to 10 × 16 ft) | Inclined Elliptical Aluminium Dual Posts | Concrete GIB Flush Sleeve / Cast-Aluminium DMT / FSB Paver Base | Spun-Dyed Sunbrella / Phifertex Micro-mesh |
| Flexy Twin | Dual 8 × 8 ft (Overall 8 × 17 ft) | Double Canopy, Center-Post Aluminium | 60 × 30 in Oblong DMT Plate / FSB Steel Base | Spun-Dyed Sunbrella / Phifertex Micro-mesh |
Explore by Application
FIM Flexy
The flagship freestanding retractable awning. No wall mounting, 360° rotation, forward/back tilt.
FIM Flexy Twin
Two independent canopies on a single oval carrier post. Double the coverage, same footprint.
FIM Flexy Zen
Architectural louvered canopy with adjustable aluminium blades. Light, ventilation, privacy control.

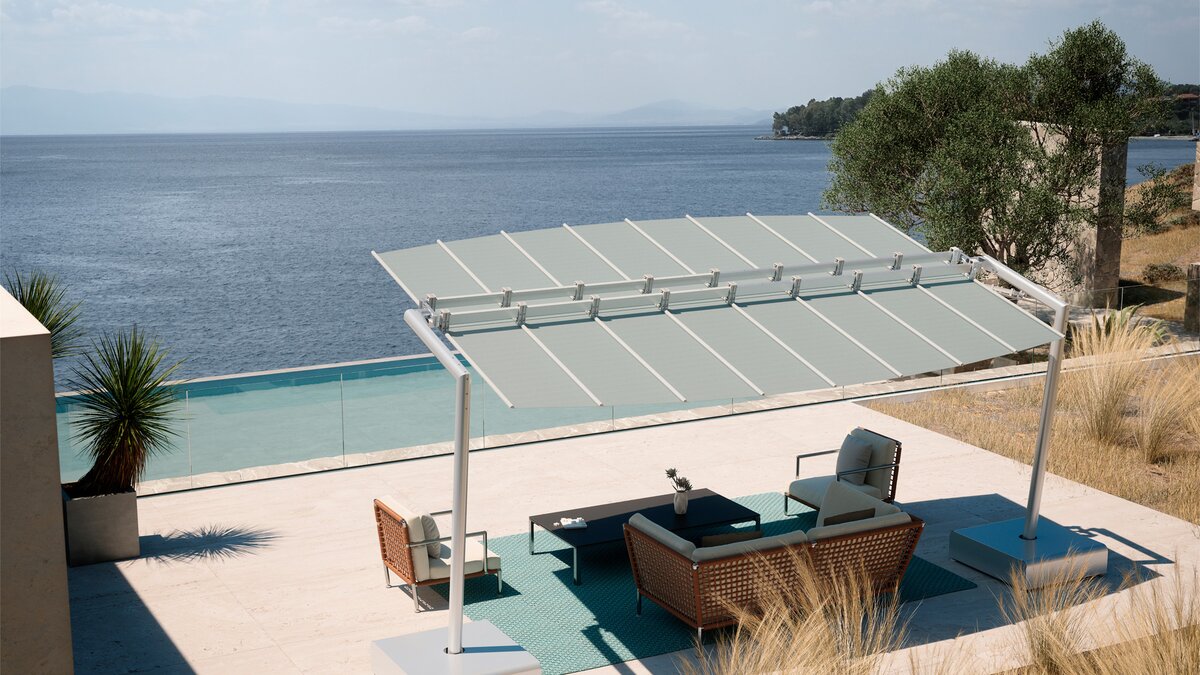

FIM Flexy Mood
Undulating wave-form canopy — a statement piece for luxury hospitality. Ships from Italy.

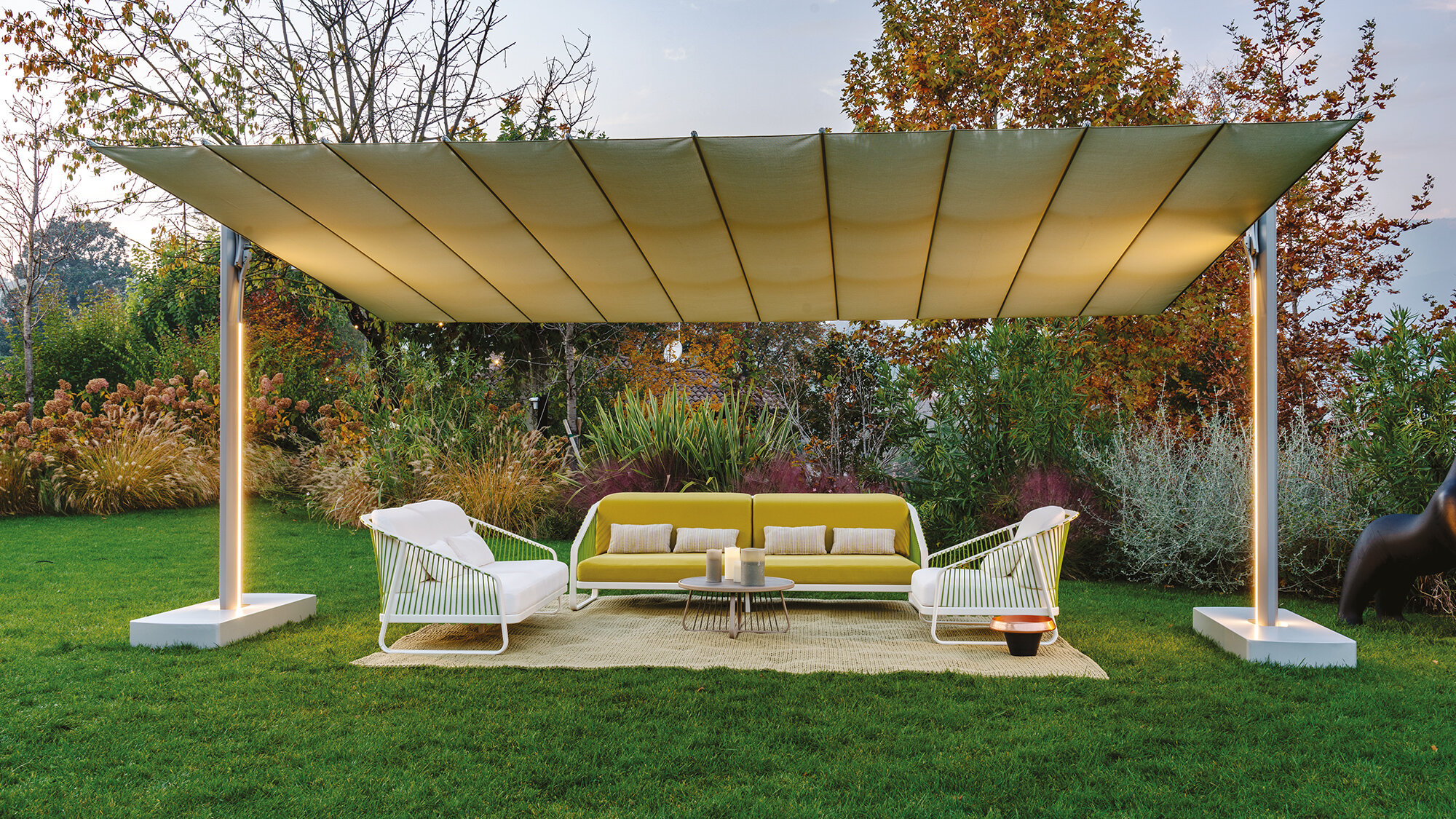

FIM Flexy Large
The commercial-scale Flexy for hotel pool decks and resort terraces. Up to 20'×26'. Ships from Italy.
Modular Freestanding Awnings: No Wall Attachment Required
When permanent pergola structures aren't viable, or strata and HOA bylaws prohibit wall-mounted shade attachments, the FIM Flexy line offers the definitive architectural alternative. The Flexy system uses a single oval aluminium carrier post from which the canopy extends laterally — no wall connection, no structural drilling, no approval requirements for the building envelope. The canopy retracts sideways along the horizontal arm in seconds using a manual crank, making it straightforward for a single person to operate. The post is secured via a Deck Mount Plate (surface bolted) or Ground Insert Base (set in concrete), and the entire unit rotates 360° to track the sun throughout the day. Configurations range from the single-canopy Flexy Standard through to the Flexy Twin — two independent canopies on one post — and the Flexy Zen, which features adjustable aluminium louvres for light and ventilation control. All models ship from our Nanaimo, BC warehouse across Canada with flat-rate FedEx delivery.
Strata & HOA Approved — The Retractable Awning Alternative
The FIM Flexy is the shade system of choice for strata-managed properties, condo buildings, and HOA-regulated communities where wall-mounted awnings are restricted or prohibited. Because the Flexy is entirely freestanding, it doesn't interact with any shared building structure — making it compliant with the vast majority of strata bylaws without requiring approval from strata councils. It's equally well-suited to restaurant patios and hotel pool decks where permanent structural modifications aren't practical. All Flexy models are available in 16 Sunbrella fabric colours with silver or bronze frame finishes. Priced from CAD $7,600 for the standard Flexy, with direct online checkout and flat-rate shipping available for all standard configurations.
Frequently Asked Questions
Freestanding Retractable Awnings — Common Questions
What sizes and coverage configurations are available for the FIM Flexy series?
The FIM Flexy series features modular rectangular formats including 8'x10', 8'x12', 10'x10', 10'x12', 10'x14', and 10'x16'. They offer up to 160 square feet of coverage per module with a clear 96-inch height clearance beneath the canopy.
How do FIM Flexy dual carrier posts support continuous inline installations?
By specifying shared central twin carrier posts, adjacent Flexy modules can be linked together in a continuous inline configuration. This design eliminates duplicate support posts on your patio and keeps busy guest walkways completely clear and unobstructed.
What are the wind load limits and operational safety protocols for freestanding awnings?
Because freestanding double-sided awnings act as large sails, they must be managed carefully under wind load. The FIM Flexy series is wind-stable up to 30 mph with top-down safety straps and proper anchoring. Staff must retract the canopies during storms or when sustained wind speeds exceed 30 mph to prevent joint and bracket deformation.
What heavy-duty anchoring systems are available for securing FIM Flexy awnings?
FIM provides three heavy-duty anchoring options to secure the Flexy in public spaces: a flush zinc-plated steel ground sleeve set in concrete, a 14x14-inch steel deck plate bolted to solid wood or wood-deck sub-framing, or a rear-offset freestanding base requiring a minimum of 250 kg of concrete ballast pavers per side pole.
What are the warranty differences for FIM Flexy systems in commercial vs. residential projects?
While residential installations carry a 5-year limited frame and fabric warranty, commercial and contract applications are covered by a 1-year limited warranty. This 1-year contract warranty protects against structural and manufacturing defects under high-frequency daily operation in commercial spaces.
How do the structural frames of the Flexy Zen, Large, and Twin designs differ?
The Flexy Zen features modern, backward-inclined elliptical masts for a sleek aesthetic. The Flexy Large uses heavy-gauge vertical elliptical profiles designed for maximum spans and integrated LED wiring. The Flexy Twin utilizes a central aluminum mast that supports two independent canopies, allowing them to tilt and retract separately to track the sun.
How does the FIM Flexy tilt mechanism adjust to block low-angle sunlight?
The canopy membrane is mounted to a dual-crossbar sliding carriage system. Using a manual string-driven pulley or crank winch, the fabric can be tilted forward or backward. This adjustment allows staff to block low-angle morning or late-afternoon sun without shifting the primary support posts.
