Swiss-Engineered · Wind-Tunnel Certified · Commercial Grade
Center Pole Parasols & Heavy-Duty Commercial Umbrellas
The ultimate collection of Glatz center pole parasols, designed in Switzerland to protect high-traffic hospitality venues and premium residential estates. Wind-tunnel certified to 120 km/h.
From wind-tunnel-certified structures to large-format architectural masterpieces, our centre-mast collection provides reliable coverage for terraces, pool decks, and coastal patios. Combining precise manual mechanics with automated retraction systems, these robust shading assets are engineered to withstand continuous environmental stress while maintaining clean, elegant architectural profiles.
The Collection
The Glatz Center Pole Portfolio
Eight purpose-built models — from compact coastal specialists to giant architectural parasols spanning 800 cm — all sharing Glatz's unified flat-roof design language and Material Class 5 fabric standard.

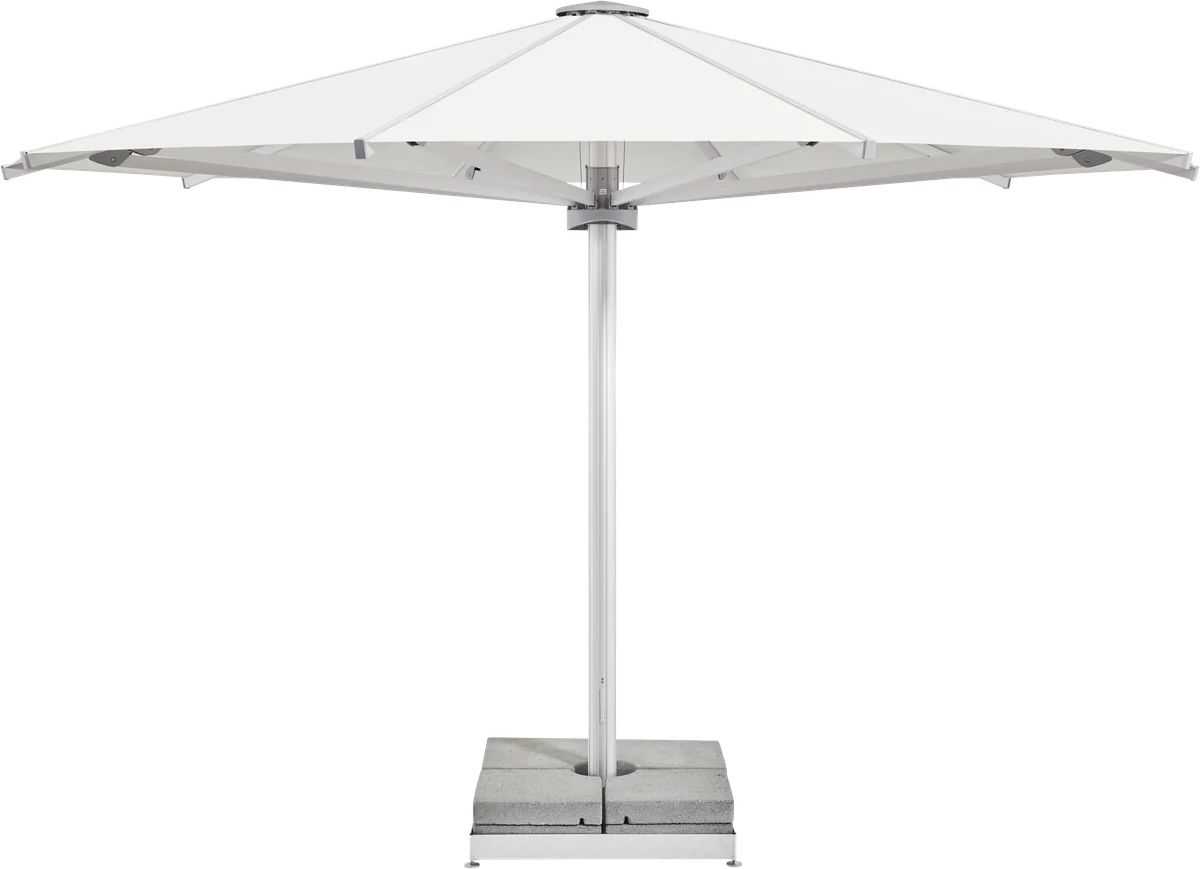

Glatz Palazzo Royal
Up to Ø800 cm · 110 km/h · 19-turn crank or motor
View Product

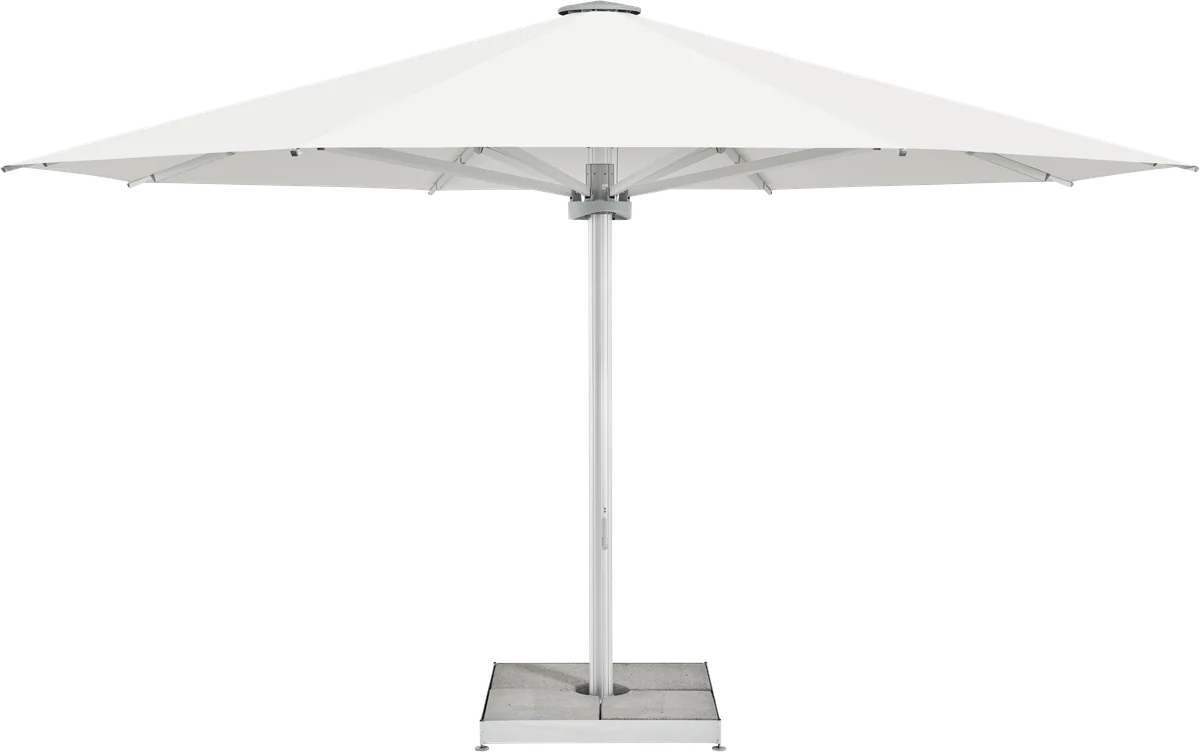

Glatz Palazzo Noblesse
Up to Ø700 cm · 95 km/h · 12-turn crank or motor
View Product

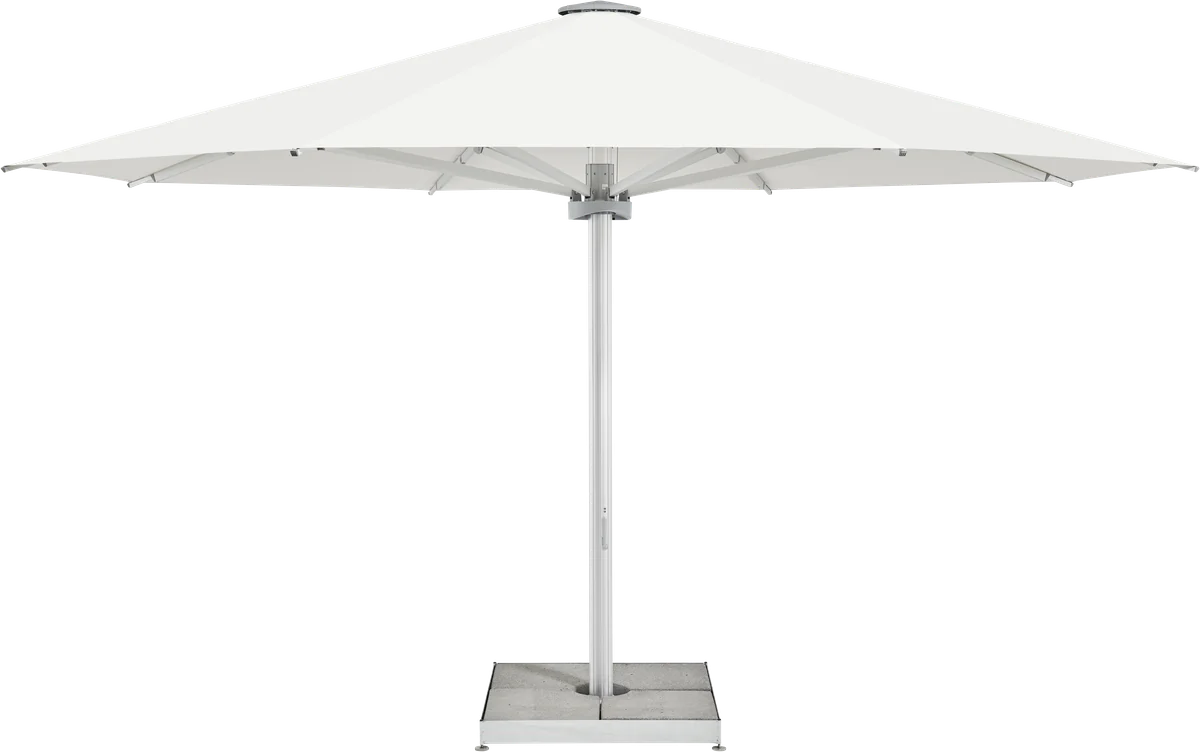

Glatz Palazzo Style
Up to Ø700 cm · 115–120 km/h · LED, infrared, BUS ready
View Product
Glatz Castello Pro
Up to Ø600 cm · 100 km/h · telescopic slide + lever
View Product
Glatz Fortello Pro
300–400 cm · 70–90 km/h · optional cordless LED
View ProductGlatz Fortero Pro
Ø350–400 cm · 50–70 km/h · clears tables 85–125 cm
View Product
Glatz Fortino Pro
Ø250–300 cm · 60–80 km/h · compact coastal specialist
View Product
Glatz Alu Smart
Up to Ø300 cm · stepless tilt · balconies & tight terraces
View ProductThe Swiss Engineering Advantage
Built to Defy the Wind
A commercial patio umbrella faces continuous structural stress from wind loads, particularly on coastal resort decks, elevated rooftops, and exposed terraces. By concentrating structural forces down a single vertical axis, center-mast models offer optimal stability. Tested in advanced wind tunnels and manufactured using corrosion-resistant aluminum and fiberglass-reinforced polymers, this collection is designed to reduce annual replacement costs and enhance guest comfort in any climate.
Patented Telescopic Counter-Motion
Operational Table Clearance
As the parasol is closed, the center mast automatically extends vertically, raising the canopy frame so it folds cleanly over fully set dining tables and bar counters. Achieving closed clearance heights of up to 135 cm, this lift system allows staff to quickly secure umbrellas during sudden wind storms without moving furniture or interrupting service.
Wind-Tunnel Certified to 120 km/h
EN-AW-6063-T66 Structural Aluminum
The masts and canopy ribs are manufactured from structural aluminum alloy EN-AW-6063-T66, a premium magnesium-silicon formulation that undergoes artificial aging to maximize yield strength. A 20-micron natural anodization process creates a hard, scratch-resistant aluminum oxide layer — ideal for saline coastal and high-chlorine poolside applications.
Integrated Power Ecosystem
LED Lighting · Infrared Heating · Motor Drive
Fully concealed internal mast wiring routes power for automated motorization, integrated LED lighting (2,700 K, 3,200 lumens), and infrared radiant heating rails directly through the framework. All electronics operate without exposed conduits, preserving clean architectural sightlines while extending dining revenue into the evening and shoulder seasons.
Portfolio Comparison
Engineering Specification Matrix
Empirical wind-tunnel data, frame dimensions, and mechanical specifications across the Glatz center pole range — for architects, engineers, and procurement officers.
| Model | Canopy Shapes | Size Range | Wind Limit | Mast · Wall | Opening Mechanics |
|---|---|---|---|---|---|
| Fortino Pro | Round, Square | Ø250–300 · 200×200–250×250 cm | 60–80 km/h | Ø38.4 mm · 2.0 mm | Opposing servo-lever, clears high tables |
| Fortero Pro | Round, Square, Rect. | Ø350–400 · 300×300–350×250 cm | 50–70 km/h | Ø55.0 mm · 2.5 mm | Opposing lever, clears 85–125 cm |
| Fortello Pro/LED | Square, Rectangular | 300×300–400×400 · 400×300 cm | 70–90 km/h | Ø67.0 mm · 3.0 mm | Opposing servo-lever, clears 95–135 cm |
| Castello Pro | Round, Square, Rect. | Ø350–600 · 300×300–450×450 cm | 60–100 km/h | Ø90.0 mm · 3.2 mm | Telescopic slide + lockable tensioning lever |
| Palazzo Style | Round, Square, Rect. | Ø350–700 · 300×300–600×500 cm | 80–120 km/h | Ø105.0 mm · 4.5 mm | Counter-motion crank/motor · clearance ≥ 80 cm |
| Palazzo Noblesse | Round, Square, Rect. | Ø400–700 · 350×350–600×600 cm | 95 km/h | Ø105.0 mm · 4.5 mm | 12-turn crank/motor · clearance ≥ 80 cm |
| Palazzo Royal | Round, Square, Rect. | Ø500–800 · 500×500–700×700 cm | 110 km/h | Ø120.0 mm · 5.5 mm | 19-turn crank/motor · clearance ≥ 80 cm |
Wind ratings are configuration and anchoring-dependent. All models require engineering-approved ground anchoring to achieve certified limits. Contact CSC Shade for project-specific specifications.
Foundation Engineering
Ground Anchoring Systems
A center pole parasol is only as stable as its foundation. Ground sockets cast into reinforced concrete transfer lateral forces directly into the earth and eliminate tripping hazards. Mobile plate bases use 120–620 kg ballast for installations where in-ground pouring is not permitted.
| Base Option | Compatible Models | Foundation Requirement | Anchoring Mechanism |
|---|---|---|---|
| Ground Socket M4 / M8 / M16 | Fortino Pro, Fortero Pro, Fortello Pro, Castello Pro, Palazzo series | Concrete block up to 120×120×50 cm depending on wind loads | Heavy-duty steel tubes cast into reinforced, frost-resistant concrete; dual drainage + electric conduits |
| PX Ground Socket | Fortino Pro, Fortero Pro | Concrete block min 60×60×60 cm depending on wind zone | Compact galvanized steel socket with integrated connecting tube |
| Heavy-Duty Plate Base M4/M8 | Fortino Pro, Fortero Pro, Fortello Pro, Castello Pro, Palazzo Noblesse | Plate footprints 91×91 cm or 110×110 cm | Steel frames ballasted with 8–16 concrete or granite elements · 120–620 kg dry ballast |
| Tip-Over Hinge M8/M16 | Palazzo Noblesse, Palazzo Royal | Integrated into heavy-duty M8/M16 ground socket installations | Multi-bolt steel hinge for safe seasonal lowering of the mast |
| Mounting Plate (Insulated) | All models | Tailored to insulation thickness and project engineering specs | Custom steel standoffs through waterproof membranes to structural concrete slabs |
Material Science
Metallurgy, Polymers & Textile Engineering
EN-AW-6063-T66 Aluminum — A premium magnesium-silicon alloy that undergoes artificial aging to maximize yield strength. The 20-micron natural anodization process creates a hard aluminum oxide surface ideal for saline coastal and high-chlorine poolside applications.
PA6GF30 Polymer Joints — Crown, slider, and runner components are molded from glass-fiber-reinforced Polyamide 6 (30% glass fill). This technical polymer provides exceptional tensile strength and fatigue resistance, replacing cast-metal parts that can become brittle over time.
A4 Marine-Grade Stainless Steel — Molybdenum-alloyed 316 stainless steel for all structural screws, pivot pins, and rivets. Prevents galvanic corrosion at critical pivot points in corrosive salt-water environments.
Material Class Comparison
100% spun-dyed polyacrylic · ~300 g/m²
UPF 50+ · lightfastness 7–8 · 350–700 days continuous exposure
Standard on all Palazzo and Castello Pro models
100% solution-dyed polyester · ~250 g/m²
UPF 50+ · lightfastness 7 · High tear resistance, excellent color retention
Recommended for exposed wind environments
Piece-dyed 100% polyester · ~220 g/m²
Lightfastness 5–6 · ~160 days continuous exposure
Suitable for sheltered or low-wind locations
120 km/h
Maximum wind certification
Ø800 cm
Maximum canopy span
1895
Swiss-engineered since
Canada-wide
Supply and specification
